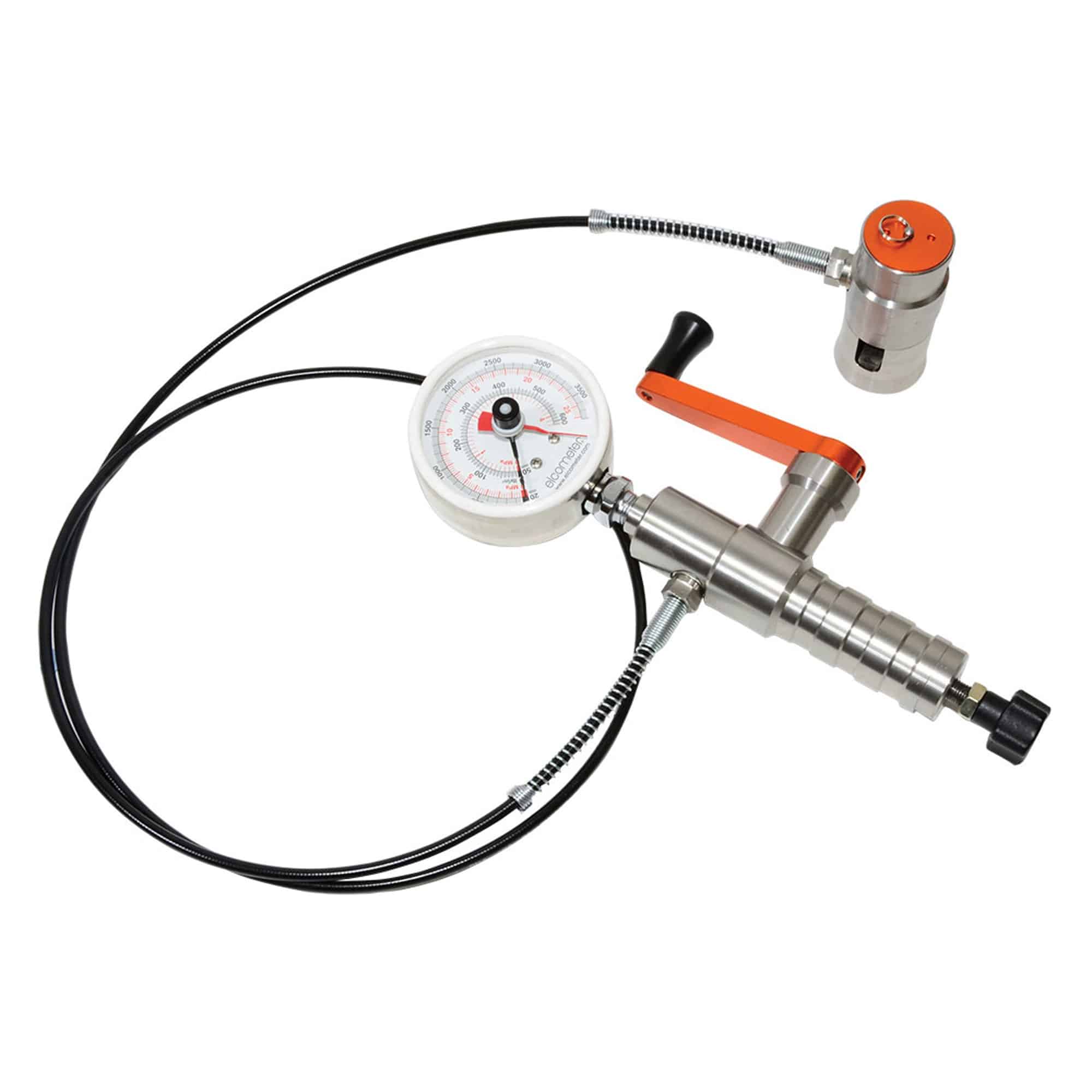

Elcometer 506 Pull-Off Adhesion Tester
$3,620.93 – $4,155.53
The design of the Elcometer 506 adhesion testers ensures that a uniform force can be easily applied throughout the range by smoothly rotating the gauge’s crank handle, ensuring repeatable adhesion results to an accuracy of ±1%.
The Elcometer 506 adhesion tester’s quick connect coupling allows the simple attachment of 14.2mm, 20mm or 50mm diameter dollies which, together with a wide range of accessories, allows coating adhesion testing on flat, curved, thick and thin substrates – including metal, wood, concrete and other fibrous materials.
The Elcometer 506 test head (actuator) has been designed to be small, ergonomic and lightweight – ideal for single handed testing of coating adhesion even in awkward or confined spaces.
elcometer 506Â Â Data SheetÂ
Elcometer 506 operation manual

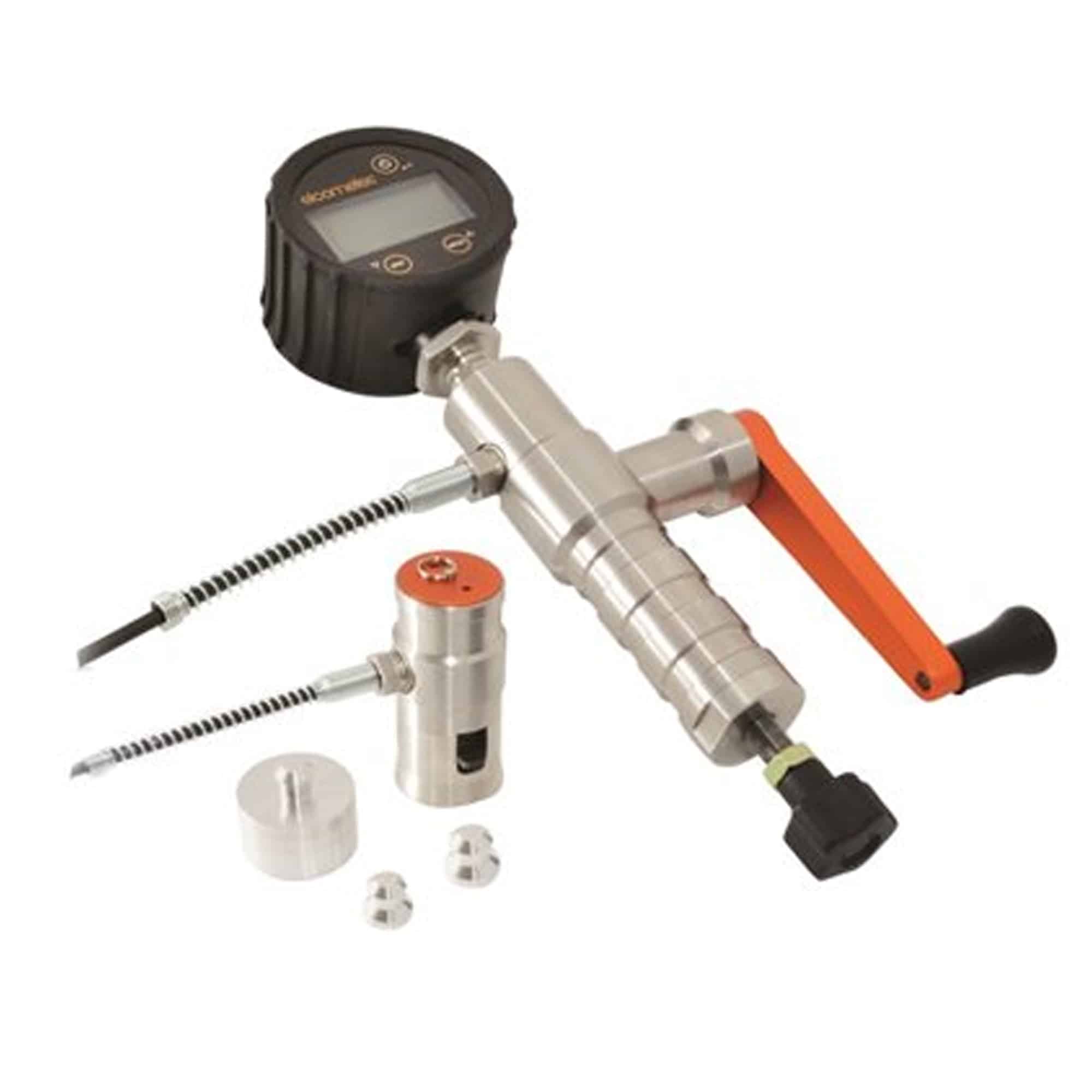

The Elcometer 506 are lightweight, portable and easy-to-use adhesion testers available as digital gauges and are suitable for measuring the pull-off adhesion of coatings up to 50MPa (7250psi) either on-site, or in the laboratory
Packing List:
20mm Kit
Elcometer adhsion Tester with 20mm dollies (x10), standard skirt for 20mm dollies, 20mm dolly
cutter handle, 20mm dolly cutter, Araldite standard two part epoxy adhesive (2 x 15ml tubes), abrasive
pad, carry case, 2 x LR6 (AA) batteries (Digital Gauge only), test certificate and operating instructions.
50mm Kit
Elcometer 506 Adhesion Tester with 50mm dollies (x6), standard skirt for 50mm dollies, 50mm dolly
cutter arbor, 50mm dolly cutter, Araldite standard two part epoxy adhesive (2 x 15ml tubes), abrasive
pad, carry case, 2 x LR6 (AA) batteries (Digital Gauge only), test certificate and operating instructions
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Options | F506-20A Elcometer 506 Analogue Adhesion Tester Kit; 20mm, F506-20AC Elcometer 506 Analogue Adhesion Tester Kit; 20mm – Certified, F506-20D Elcometer 506 Digital Adhesion Tester Kit; 20mm, F506-20DC Elcometer 506 Digital Adhesion Tester Kit; 20mm – Certified, F506-50D Elcometer 506 Digital Adhesion Tester Kit; 50mm, F506-50DC Elcometer 506 Digital Adhesion Tester Kit; 50mm – Certified |
