- Part No 2355400
- Input Voltage 85-250 V
- Input Frequency 50-60 Hz
- Air Inlet Pressure 87-116 psi
- Exhaust Air Flow 0.05-20 Nm3/h
- Input Power 40 W
- Protection Class IP64
- Air Inlet Connection G 1/4″
- Operating Temperature 5-45 ?C
- Weight 38 kg
Intuitive User Guidance
The optimal arrangement of the operating elements and functions as well as the unique adjustment of recipes allow for intuitive device handling. Advanced user functions allow you to store up to 50 coating recipes and to adjust many other parameters individually.
The clear arrangement of the operating elements and the fast recipe adjustment in the EPG SPRINT XE control unit allow easy handling in daily work.
Excellent coating results
The integrated flushing function at the push of a button, the lance lock and various plug devices allow efficient box and color change.
With the SPRINT Airfluid XE you can work directly from the box. It is suitable for small batch sizes and frequent color changes. Due to the diagonal alignment of the powder box on the vibrating table an almost complete emptying is possible.

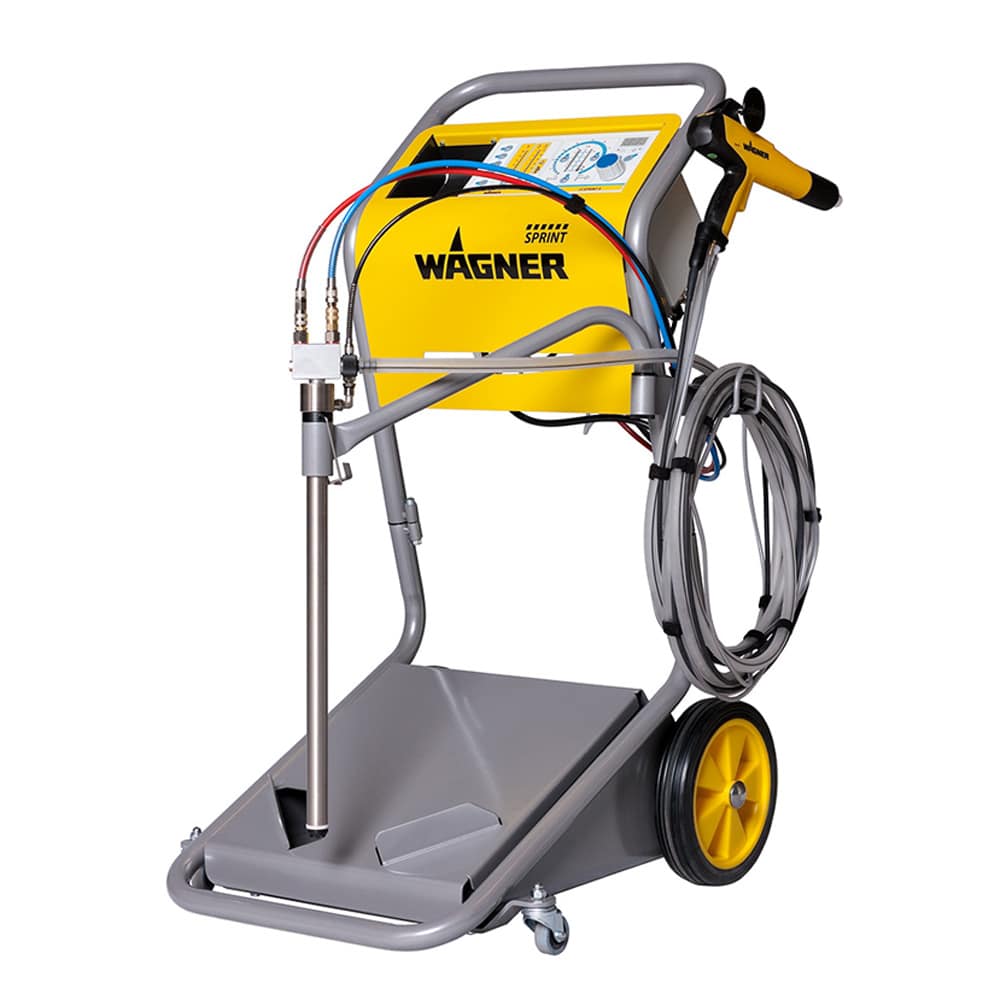

Robust and mobile
The manoeuvrable and at the same time stable equipment trolley with electric vibrating table simplifies manual coating and ensures safe working even in a rough or narrow working environment.
Manual Gun PEM-X1
With only 490 g, the PEM-X1 is a lightweight powder gun, while also being very robust
at the same time. In combination with its ergonomic design
it enables fatigue-free working.
The integrated remote control allows a quick adjustment of the powder quantity.
A double click on the trigger enables a quick change to a special recipe. Even
factory-set recipes can be assigned individual parameters.
The integrated high-power cascade keeps the high voltage stable even at 100 kV,
thus enabling high coating performance. With the cascade characteristic curve
adjustment, even powder coatings that are difficult to charge can be coated efficiently. The integrated cascade cooling ensures a long service life and durable performance.
The replaceable protective wedge in the electrode holder reduces the cost of
