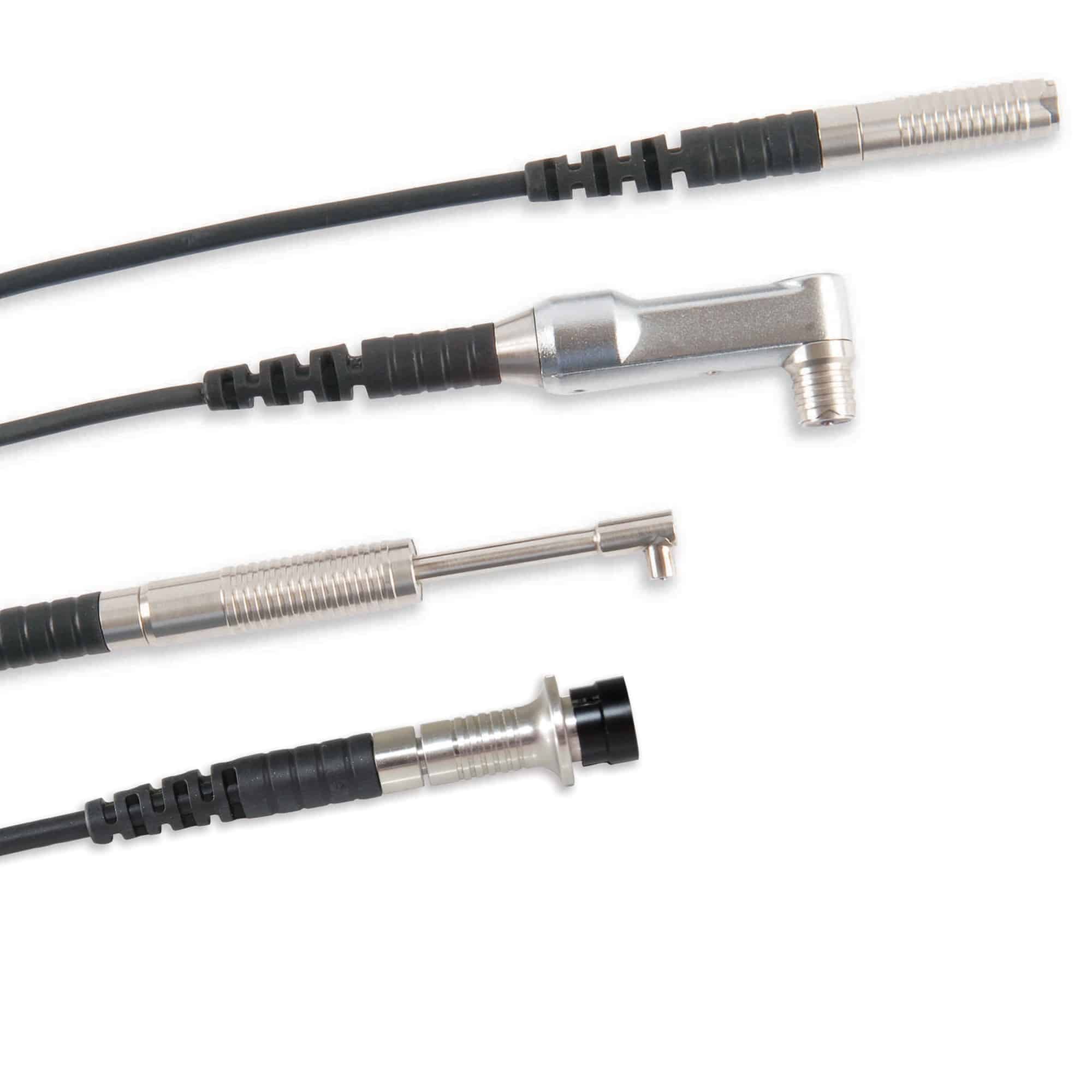

Elcometer Probe Range for separate 456 gauges
$709.71 – $1,908.23
All Elcometer 456 coating thickness gauge probes are fully interchangeable and are available in a number of designs and scale ranges to meet your specific application Contact Phillro for all the options:
- Ferrous coating thickness gauge probes measure non magnetic coatings on ferro-magnetic substrates.
- Elcometer 456 coating thickness ferrous gauges accept any ferrous probe.
- Non-ferrous coating thickness gauge probes measure non conductive coatings on non-ferrous metal substrates and
- Elcometer 456 non-ferrous gauges accept any non-ferrous probe.
- Dual FNF probes measure both ferrous and non-ferrous applications with automatic substrate detection.
- Elcometer 456 FNF coating thickness gauges accept all ferrous, non-ferrous and dual FNF probes.
Elcometer 456 data sheet data sheet
Probe selection chart elcometer 456 data sheet
- Scale 0.5 Probes measure 0 – 500 microns ( contact us for these probes )
- Scale 1 Probes measure 0 – 1500 microns
- Scale 2 Probes measure 0 – 5000 microns
- Scale 3 Probes measure 0 – 13mm
- Scale 6 Probes measure 0 – 25mm
- Scale 7 Probes measure 0 – 31mm
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Options | Ferrous Straight Probe T456CF1S 0-1500 micron, Ferrous 90° Probe T456CF1R 0-1500 micron, Ferrous Scan Probe T456CF1U 0-1500 micron, Ferrous 90° Mini Probe T456CFM5R90A 0-1500 micron, Ferrous PINIP™ Integral Probe T456CF1P 0-1500 micron, Non Ferrous Straight Probe T456CN1S 0-1500 micron, Non Ferrous 90°Probe T456CN1R 0- 1500 micron, Non Ferrous Mini 90°Probe T456CNM5R90C 0-1500 micron, Non Ferrous Mini 90°Probe 400 mm long T456CNM5R90E 0-1500 micron, Non Ferrous PINIP™ Integral Probe T456CN1P 0-1500 micron, Non Ferrous Anodiser Probe T456CN1AS 0-1500 micron, FNF Straight Probe T456CFNF1S 0-1500 micron, FNF Scan Probe T456CFNF1U 0- 1500 micron, FNF Right Angle T456CFNF1R 0- 1500 micron, FNF 6 PINIP™ Integral Probe T456CFNF1P 0- 1500 micron, FNF Straight Probe armoured cable T456CFNF1ARM 0- 1500 micron, Ferrous Straight Probe T456CF2S 0 -5000 mircon, Ferrous Scan Probe T456CF2U 0 -5000 micron, Ferrous 90° Probe T456CF2R 0 -5000 micron, Non Ferrous Straight Probe T456CN2S 0-5000 micron, Non Ferrous PINIP™ Integral Probe T456CN2P 0 -5000 micron, Ferrous Straight Probe T456CF3S 0 -13000 micron, Non Ferrous Straight Probe T456CN3S 0 -13000 micron, Ferrous Straight Probe T456CF6S 0 -25000 micron, Non Ferrous Straight Probe T456CN6S 0 -25000 micron, Ferrous Straight Probe armoured T456CF7ARM 0 -31000 micron |
