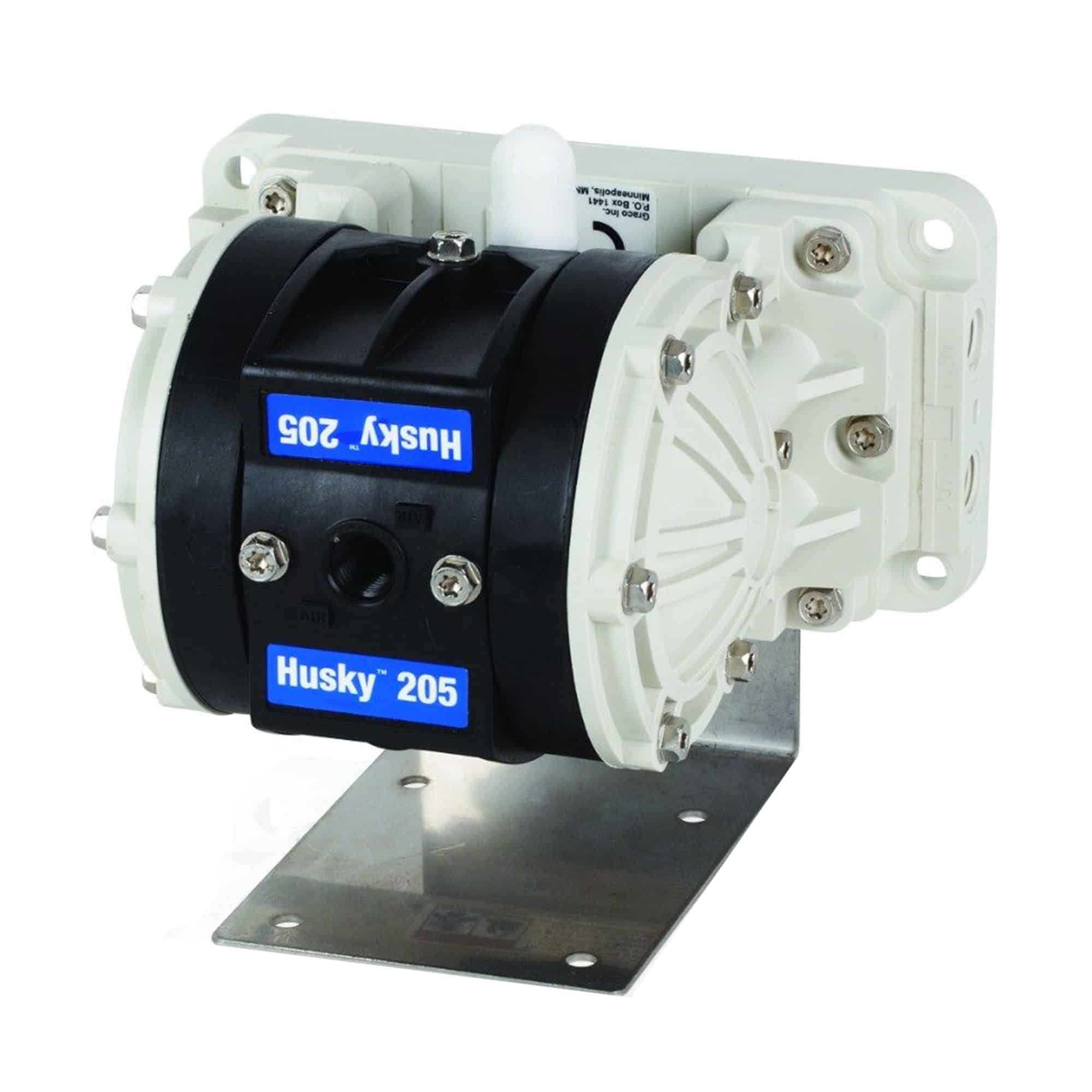

Graco Husky 205 1/4″ Diaphragm pumps
Price range: $1,120.57 through $1,594.78
Husky 205 Air-Operated Double Diaphragm Pumps 1/4 inch Positive Displacement Double Diaphragm Pump:
The Husky 205 has a 1/4 inch (6.3 mm) connection and is available in polypropylene, groundable acetal and PVDF, The 205 air-operated diaphragm pump features spring check valves for superior priming in any mounting configuration.
Benefits of the Husky 205 double diaphragm pumps
- True-formed PTFE and Santoprene diaphragms for enhanced performance
- Spring loaded checks allow the diaphragm pump to work in any orientation
- Inlet and Outlet are interchangeable
- Remote control option using an external controller
Overview
- Maximum fluid flow: 5.0 gpm (18.9 l/min)
- Maximum Fluid Discharge Pressure: 100 psi (7 bars, 0.7 MPa)
- Maximum size pumpable solids: 0.06 in (1.5 mm)
- Fluid displacement per cycle : 0.012 g (0,045 liter
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Options | D11021 Husky 205 1/4" NPT Acetal body and check valves with Teflon Diaphragms, D12091 Husky 205 1/4" NPT Polypropylene body & check valves with Teflon Diaphragms, D150A1 Husky 2051/4" NPT Kynar (PVDF) body and check valves with Teflon Diaphragms, D22091 Husky 205 1/4" BSP Remote Air Valve Polypropylene body & check valves with Teflon Diaphragms |
